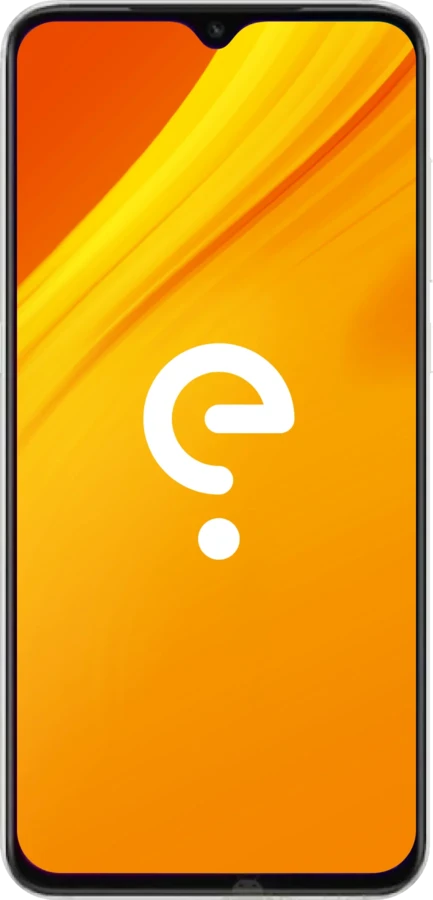

Xiaomi pyxis

Guides

Command line

For advanced users, installing /e/OS with Android platform tools.

Install
Build

Build /e/OS for yourself with your own settings.

Build

Boot Modes

Recovery

With the device powered off - hold Volume Up + Power.Keep holding both buttons until the "MI" logo appears on the screen, then release.

Download

With the device powered off - hold Volume Down + Power. Keep holding both buttons until the word "FASTBOOT" appears on the screen, then release.

Support the project

Join the testing community Report an issue about pyxis Contribute Donate

Usability

Known issue(s) 0

Mi CC 9

pyxis

Apps Compatibility

Bootloader
not lockable
Build Variant
userdebug
Play integrity
basic (to be confirmed)
Release Type
community

Device details

Release
2019
SoC
Qualcomm SDM710 Snapdragon 710
RAM
6 GB
CPU
Octa-core Kryo 360
2 x 2.2 GHz + 6 x 1.7 GHz
Architecture
arm64
GPU
Qualcomm Adreno 616
Network
  • 2G bands: GSM
  • 2G bands: CDMA
  • 3G bands: UMTS
  • 4G bands: LTE
Storage
64/128 GB
SD card
Max 128 GB hybrid
Screen
6.31 in
1080x2340 ( PPI)
AMOLED (max Hz)
Device Tree
android_device_xiaomi_pyxis
Bluetooth
5 with A2DP + aptX HD
Wi-Fi
802.11 a/b/g/n/ac
Peripherals
  • A-GPS
  • Accelerometer
  • Compass
  • Dual SIM
  • Dual-frequency GNSS
  • FM radio
  • Fingerprint reader
  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • Gyroscope
  • IR blaster
  • Light sensor
  • NFC
  • Proximity sensor
  • USB OTG
Camera(s)
No of Cameras: 4
  • 48 MP, Dual LED flash
  • 8 MP (wideangle), Dual LED flash
  • 2 MP (depth), Dual LED flash
  • 32 MP (front), None flash
Dimensions
156.8 mm (h)
74.5 mm (w)
8.7 mm (d)
Battery
Non-removable Li-Po 4030 mAh

/e/OS Information

Maintainers
  • /e/OS Build Team
Build versions
  • A15 (community)
Models Supported
Models:
  • M1904F3BC
Other models are not supported
Disclaimer: We cannot guarantee that all the device specific information on this page is 100 % up to date or accurate. Read more.
