Sony pdx206

Guides

Command line

For advanced users, installing /e/OS with Android platform tools.

Install
Build

Build /e/OS for yourself with your own settings.

Build

Boot Modes

Recovery

With the device powered off - hold Volume Down + Power

Download

With the device powered off - hold Volume Up and connect the USB cable. The notification light should turn blue.

Support the project

Join the testing community Report an issue about pdx206 Contribute Donate

Usability

Known issue(s) 0

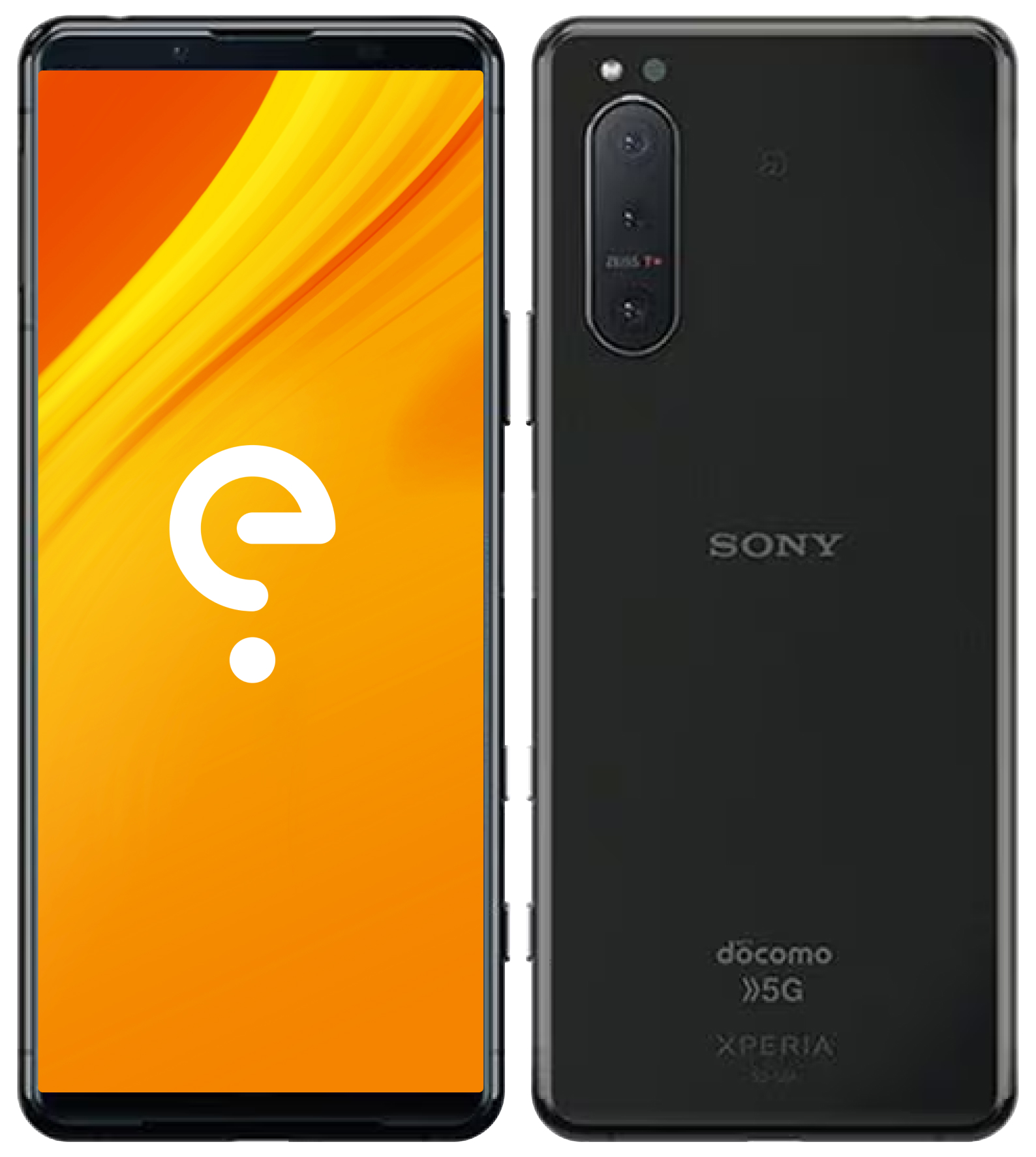

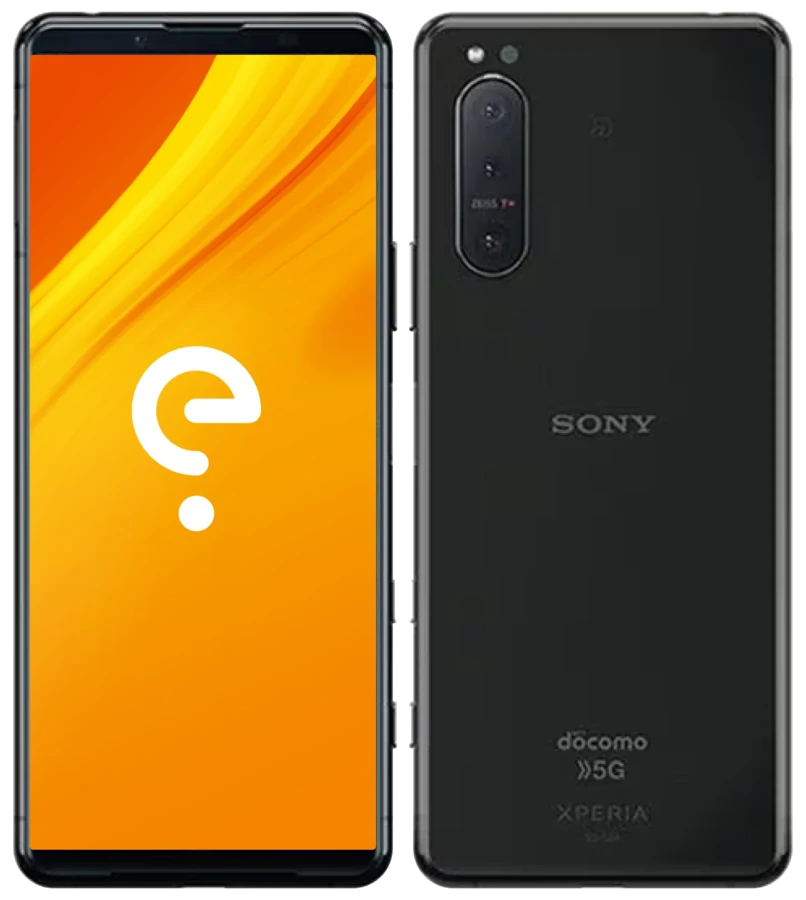

Xperia 5 II

pdx206

Apps Compatibility

Bootloader
not lockable
Build Variant
userdebug
Play integrity
basic (to be confirmed)
Release Type
community

Device details

Release
September 2020
SoC
Qualcomm SM8250 Snapdragon 865
RAM
8 GB
CPU
Octa-core Kryo 585
1 x 2.84 GHz + 3 x 2.42 GHz + 4 x 1.8 GHz
Architecture
arm64
GPU
Qualcomm Adreno 650
Network
  • 2G bands: GSM
  • 3G bands: UMTS
  • 4G bands: LTE
  • 5G bands: NR
Storage
128/256 GB UFS3.0
SD card
max 1 TB, hybrid
Screen
6.1 in
2520x1080 (120 PPI)
OLED (max Hz)
Device Tree
android_device_sony_pdx206
Bluetooth
5.1 with A2DP + aptX HD
Wi-Fi
802.11 a/b/g/n/ac/ax
Peripherals
  • A-GPS
  • Accelerometer
  • Compass
  • Dual SIM
  • Dual-frequency GNSS
  • Fingerprint reader
  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • SBAS
  • QZSS
  • Gyroscope
  • Hall effect sensor
  • Light sensor
  • NFC
  • Proximity sensor
  • USB OTG
Camera(s)
No of Cameras: 4
  • 12 MP (wide), LED flash
  • 12 MP (telephoto), LED flash
  • 12 MP (ultrawide), LED flash
  • 8 MP, None flash
Dimensions
158.0 (h)
68.0 (w)
8.0 (d)
Battery
Non-removable Li-Ion 4000 mAh

/e/OS Information

Maintainers
  • /e/OS Build Team
Build versions
  • A16 (community)
Models Supported
Models:
  • XQ-AS72
  • XQ-AS62
  • XQ-AS52
  • XQ-AS42
Other models are not supported
Disclaimer: We cannot guarantee that all the device specific information on this page is 100 % up to date or accurate. Read more.
