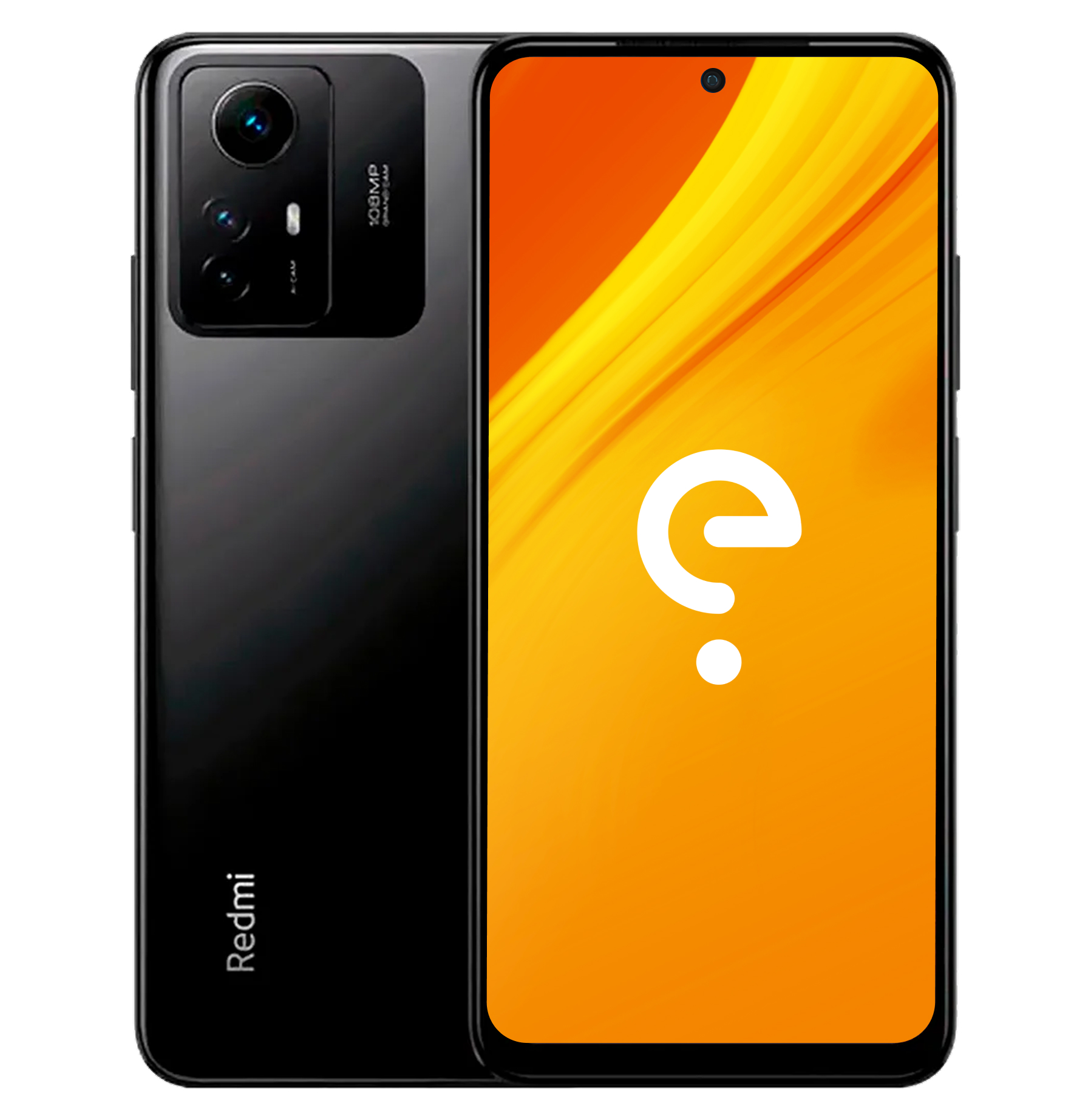

Xiaomi mayfly Community

Guides

Command line

For advanced users, installing /e/OS with Android platform tools.

Install
Build

Build /e/OS for yourself with your own settings.

Build

Boot Modes

Recovery

With the device powered off - hold Volume Up + Power.Keep holding both buttons until the "MI" logo appears on the screen, then release.

Download

With the device powered off - hold Volume Down + Power. Keep holding both buttons until the word "FASTBOOT" appears on the screen, then release.

Support the project

Join the testing community Report an issue about mayfly Contribute Donate

Usability

Known issue(s) 0

12S

mayfly

Apps Compatibility

Bootloader
not lockable
Build Variant
userdebug
Play integrity
basic (to be confirmed)
Release Type
community

Device details

Release
July 2022
SoC
Qualcomm SM8475 Snapdragon 8+ Gen1
RAM
8/12 GB LPDDR5
CPU
Octa-core Kryo
1 x 3.19 GHz + 3 x 2.75 GHz + 4 x 1.8 GHz
Architecture
arm64
GPU
Qualcomm Adreno 730
Network
  • 2G bands: GSM
  • 2G bands: CDMA
  • 3G bands: UMTS
  • 4G bands: LTE
  • 5G bands: NR
Storage
128/256/512 GB
SD card
–
Screen
6.28
2400x1080 ( PPI)
AMOLED (max 120 Hz)
Device Tree
android_device_xiaomi_mayfly
Bluetooth
5.2 with A2DP + aptX HD
Wi-Fi
802.11 a/b/g/n/ac/ax
Peripherals
  • A-GPS
  • Accelerometer
  • Barometer
  • Compass
  • Dual SIM
  • Dual-frequency GNSS
  • Dual speakers
  • Fingerprint reader
  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • NAVIC
  • SBAS
  • QZSS
  • Gyroscope
  • IR blaster
  • Light sensor
  • NFC
  • Qi wireless charging
  • Qi reverse wireless charging
  • Ultrasound proximity sensor
  • USB OTG
Camera(s)
No of Cameras: 4
  • 50 MP (wide angle), Dual LED (dual tone) flash
  • 13 MP (ultra-wide angle), Dual LED (dual tone) flash
  • 5 MP (telemacro), Dual LED (dual tone) flash
  • 32 MP (front), None flash
Dimensions
152.7 mm (h)
69.9 mm (w)
8.16 mm (d)
Battery
Non-removable Li-Po 4500 mAh

/e/OS Information

Maintainers
  • /e/OS Build Team
Build versions
  • A16 (community)
Models Supported
Models:
  • 2206123SC
Other models are not supported
Disclaimer: We cannot guarantee that all the device specific information on this page is 100 % up to date or accurate. Read more.
